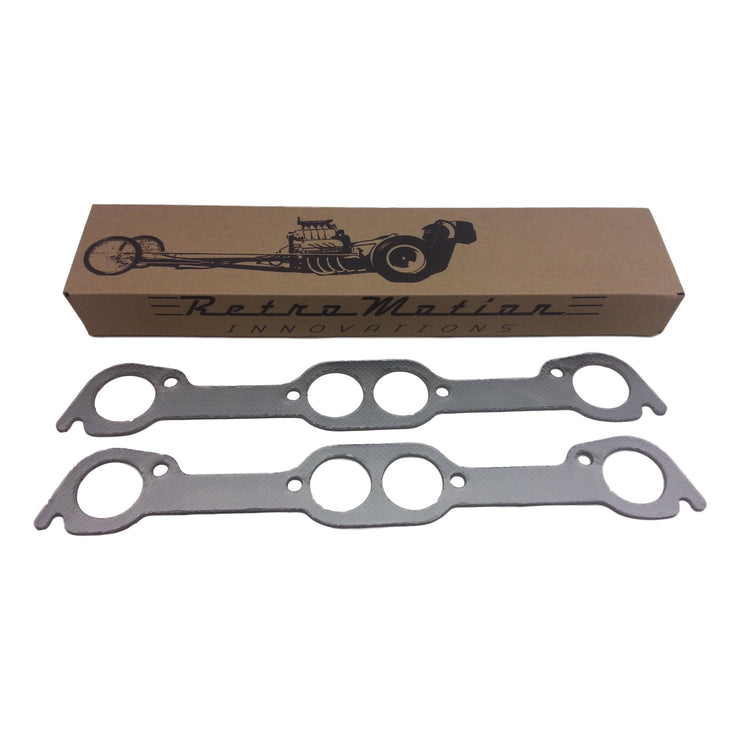

This is our very own 1968-1974 Pontiac Round Port graphite exhaust manifold gasket set!
For Pontiac Round Port Head numbers: R96A, 614, 197, 191, 7F6, 16X
PRODUCT FEATURES:
- Made in USA on our own tooling
- 1/8" thick gasket material (uncompressed)
- Compresses up to 50%
- Fills pitting and slightly warped surfaces for a perfect seal
- Stress relaxation <10% (No re-torque required)
- Graphite material will not burn out

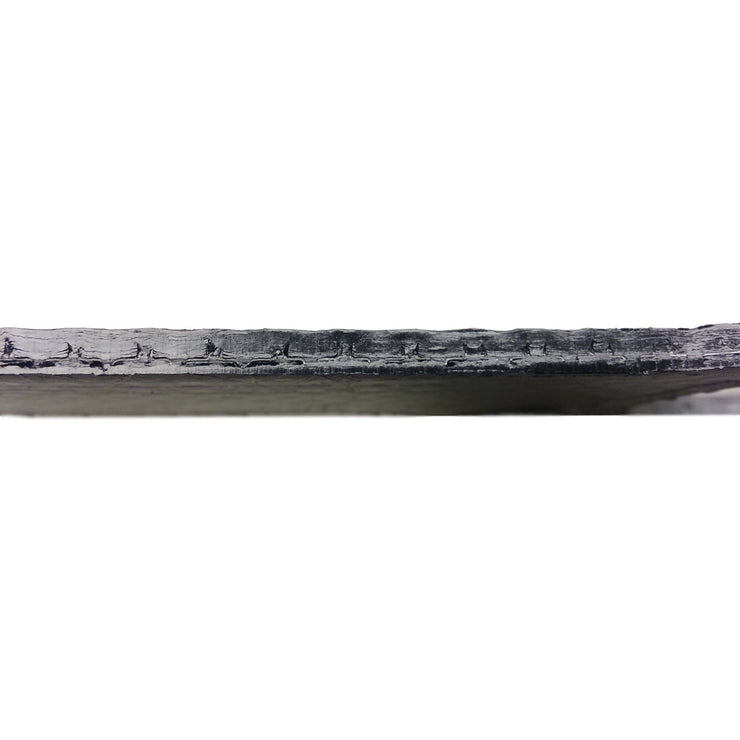

- Gasket has a Stainless Steel core sandwiched between two graphite layers.
- 1- 7/8" port diameter
- Open end bolt holes for easy installation
INSTALLATION TIPS:
- DO NOT BEND (These gaskets will break if you bend them too far)
- DO NOT use sealants
- Hang manifolds or headers on heads with end two bolts and slide the gaskets in between
- DO NOT over torque (20 ft-lbs)
For Pontiac Round Port Head numbers: R96A, 614, 197, 191, 7F6, 16X
For Edelbrock Performer RPM Round Port Cylinder Heads: 60569 60579 605719 60589 60599 605919 60587
Engines: 326 350 389 400 421 428 455,
UPC: 0638029992268
Part Number: RMI-14004
Replaces factory GM 9794055
Engine Types: Ram Air II, Ram Air IV, Super Duty, HO, High Output, RAII, RAIV, Ram Air 2, Ram Air 4
