RetroMotion Innovations

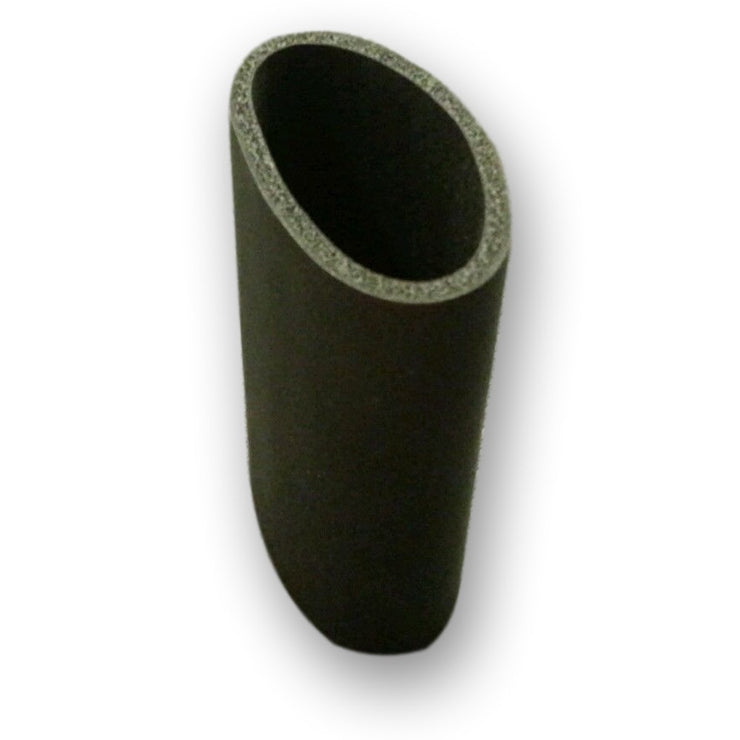

Electric Fuel Pump Vibration-Dampening Cooling Sleeve

Regular price $3.75 USD Save $-3.75 USD
111 in stock
These are used to surround in-tank fuel pumps.  This soaks up fuel and helps with cooling when the fuel level gets low and the pump becomes partially exposed.  These also reduce pump noise and help protect the pump from vibration.  A little dab of WD-40 or similar product helps these slide onto the pump easily during installation.

Pictures of installation examples are:

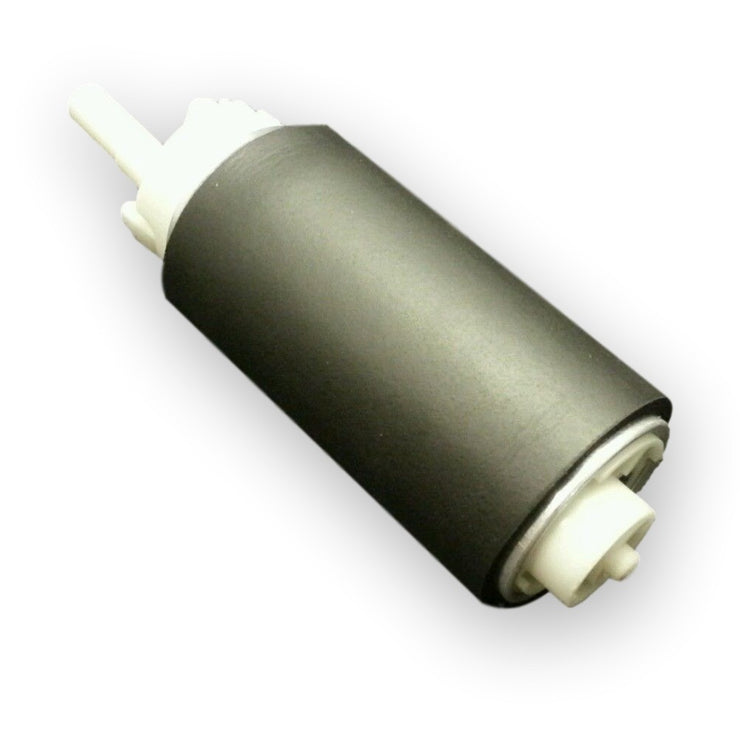

  1. A GM style pump

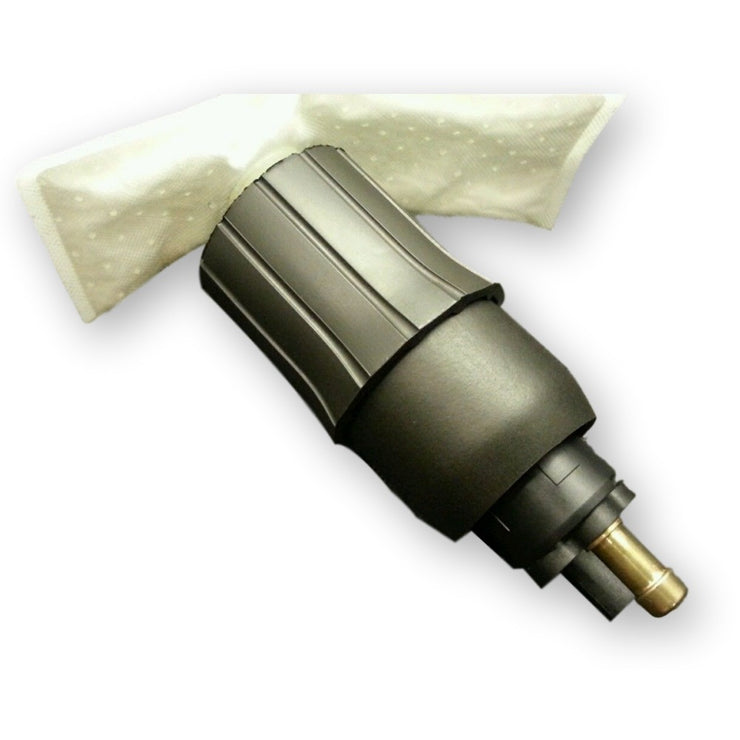

  2. A Ford style pump where this sleeve has been trimmed and used in addition to the factory rubber isolator to provide protection to the top of the pump.

Dimensions:
  • Thickness: 1/8"
  • Length: 3.25"
  • Will fit pumps that are between 1.430" (36.5mm) and 1.5" (38mm) OD.

BIN: 1A8
