This is our original design, backed by thousands of happy customers since 2018

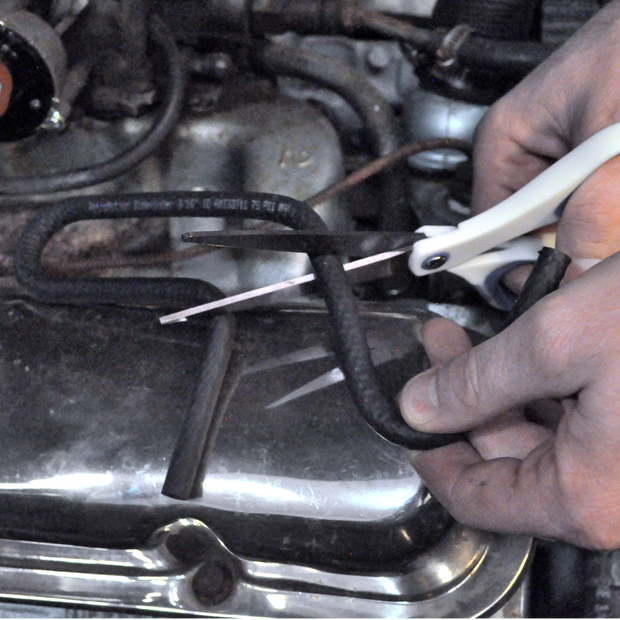

With this handy pre-molded hose, you can custom fit your fuel and oil lines! These really give your project a finished professional look, while avoiding kinks in tight spaces which cause flow restrictions. Available in J30R7 spec (3/16"-3/8" - 50 PSI working pressure, 1/2" 35 PSI working pressure), with popular sizes available in J30R9 (100 PSI working pressure). Safe for use with gasoline, oil or E85. The hose is molded to shape during manufacturing to include commonly needed bends. Simply cut the portion out that you need to create 45, 90, 135, and 180 degree bends. Attach to a tube or hose barb in your application using appropriate hose clamps.
Dimensions:
3/16"
J30R7 (50 PSI) PN: RMI-33011
Inner Diameter: .187" (4.75 mm)
Outer Diameter: .375"
Overall Dimensions: 9" x 5.5"
1/4"
J30R7 (50 PSI) PN: RMI-33007
Inner Diameter: .250" (6.35 mm)
Outer Diameter: .5"
Overall Dimensions: 7.5" x 4"
5/16"
J30R7 (50 PSI) PN: RMI-33005
J30R9 (100 PSI) PN: RMI-33004
Inner Diameter: .3125" (8 mm)
Outer Diameter: .57"
Overall Dimensions: 7.5" x 4.5"

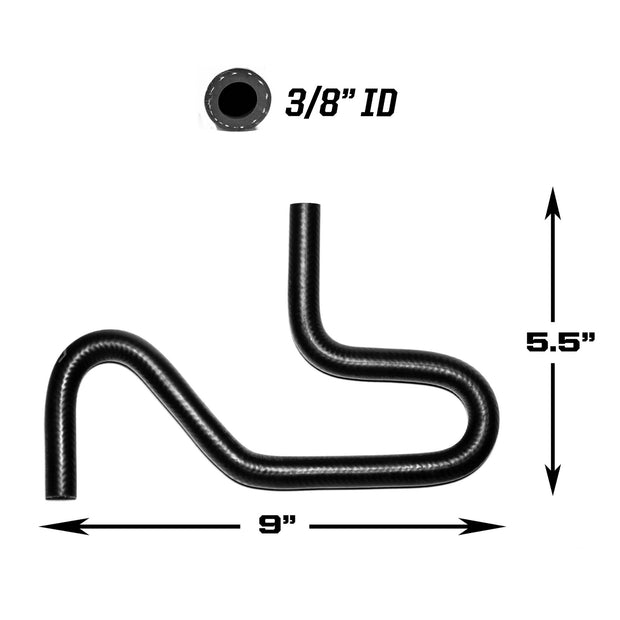

3/8"
J30R7 (50 PSI) PN: RMI-33003
J30R9 (100 PSI) PN: RMI-33006
Inner Diameter: .375" (9.5 mm)
Outer Diameter: .65"
Overall Dimensions: 9" x 5.5"
1/2"
J30R7 (35 PSI) PN: RMI-33010
Inner Diameter: .5" (13 mm)
Outer Diameter: .75"
Overall Dimensions: 10.5" x 7"
J30R7 Specifications
Exceeds SAE J30R7
Max working pressure: 50 PSI (35 PSI for 1/2" hoses)
Burst Pressure rating: 250 PSI
Burst Pressure (Actual Test Result): 480PSI
Temperature Range: -40°F to +257°F (-40°C to +125°C)
Applications: Carburetors, Fuel Injection, (up to 50 PSI), Low Pressure Gasoline, Diesel, Ethanol E10, E85, PCV Emissions Hose, Oil, Power Steering Return Line, Plumbing, Water, Coolant
J30R9 Specifications
Max working pressure: 100 PSI
Burst Pressure rating: 900 PSI
Temperature Range: -29°F to +275°F (-34°C to +135°C)
Applications: Carburetors, Fuel Injection (up to 100 PSI), Diesel, Ethanol E10, E85, PCV Emissions Hose, Oil, Power Steering Return Line, Plumbing, Water, Coolant.
** Not designed to be submerged in fuel, such as inside a fuel tank **
